Rigging Set Up

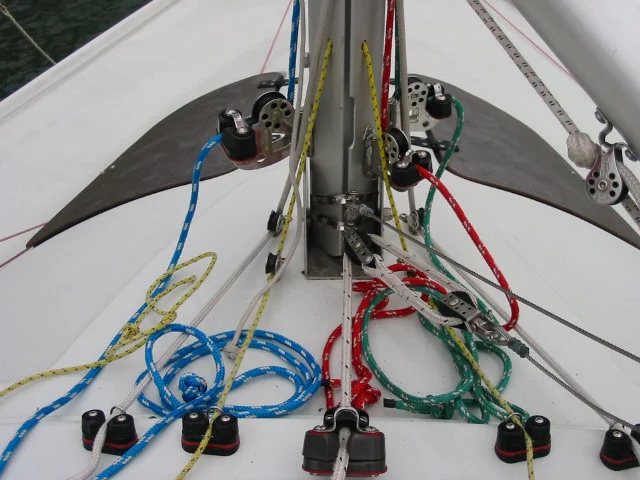

                                                               Central Control Line for Aft Lowers, Internal Jib Halyard Fine Tune,

                                                               Central Control Line for Aft Lowers, Internal Jib Halyard Fine Tune,

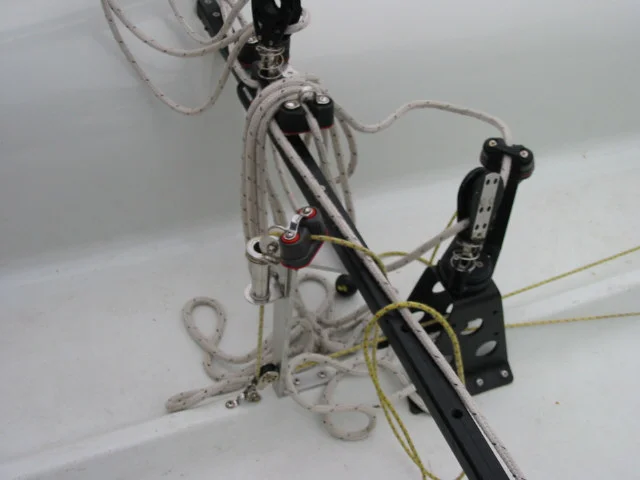

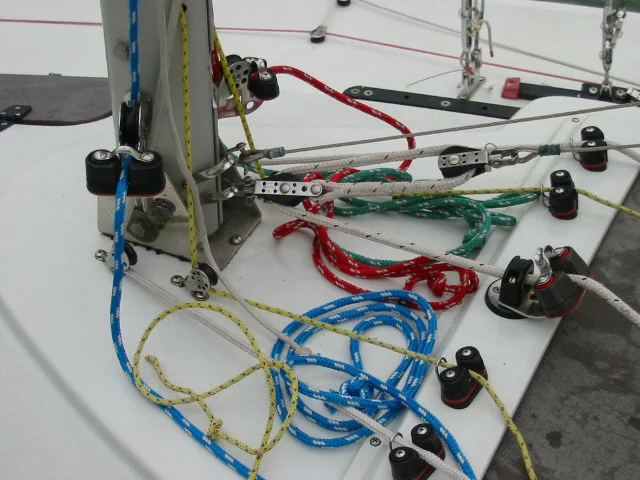

                                                                                                 Swivel Cleat for vang, central control for aft lowers

                                                                                                 Swivel Cleat for vang, central control for aft lowers

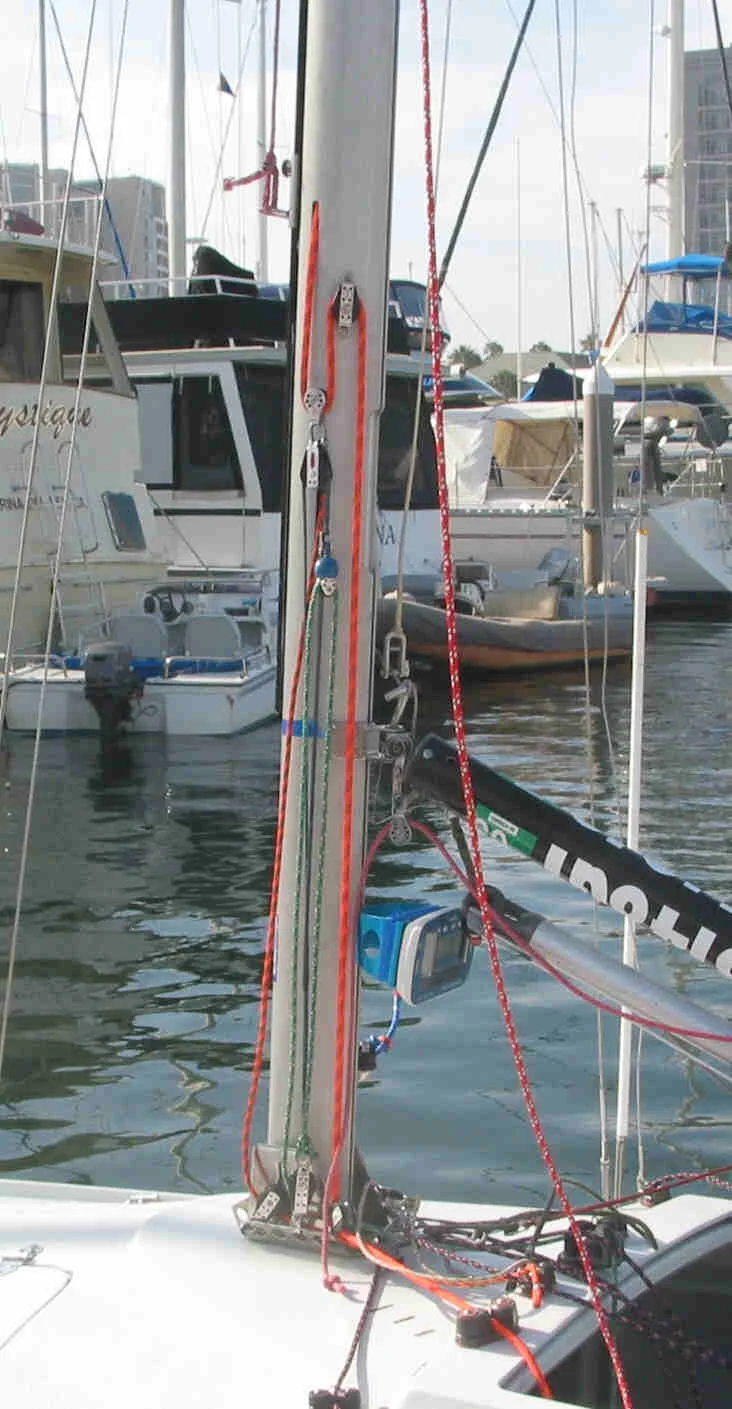

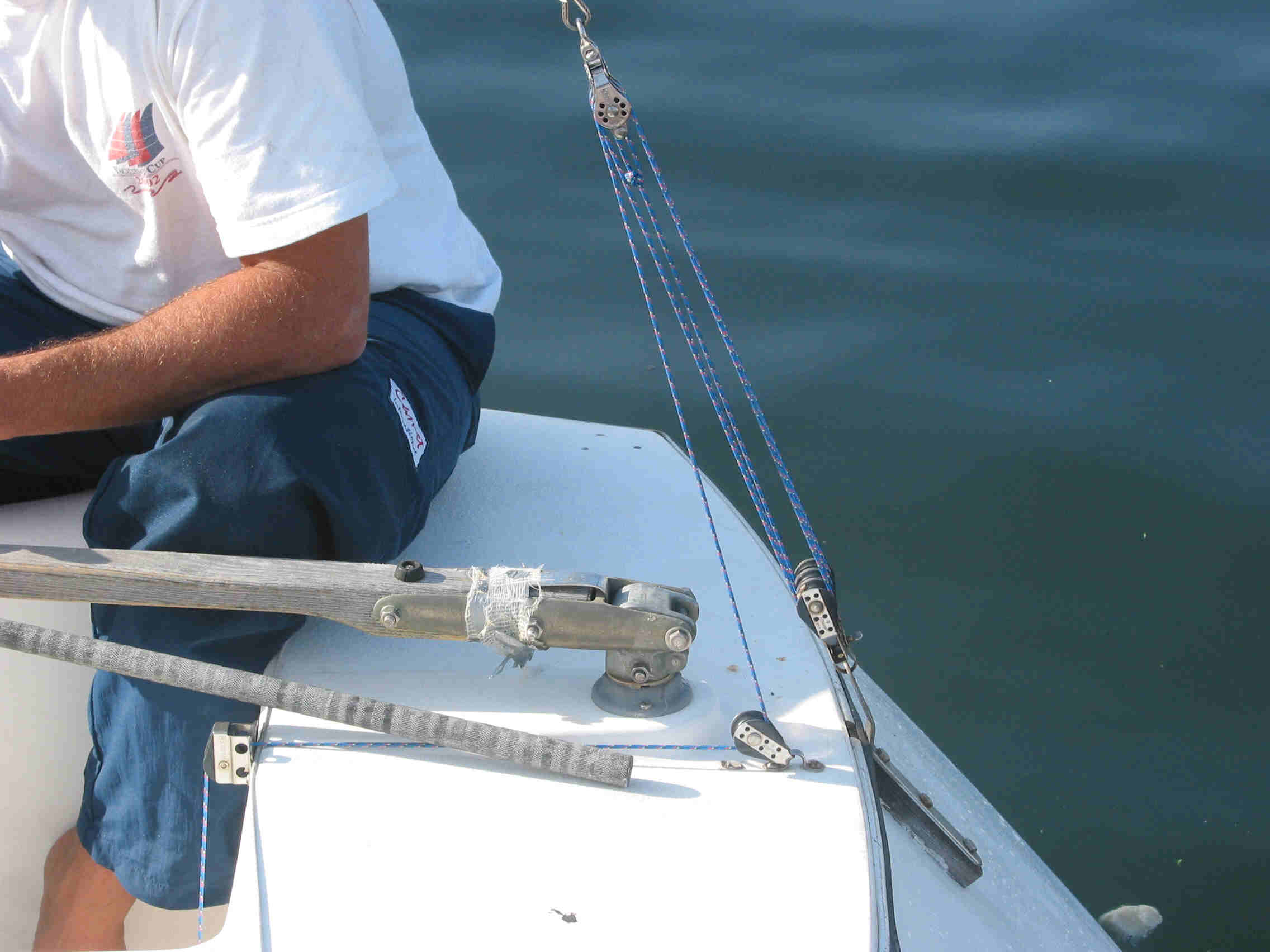

                                                                                                              Cascading backstay 24:1

                                                                                                              Cascading backstay 24:1

                                                                         External Jib Halyard Fine Tune

                                                                         External Jib Halyard Fine Tune

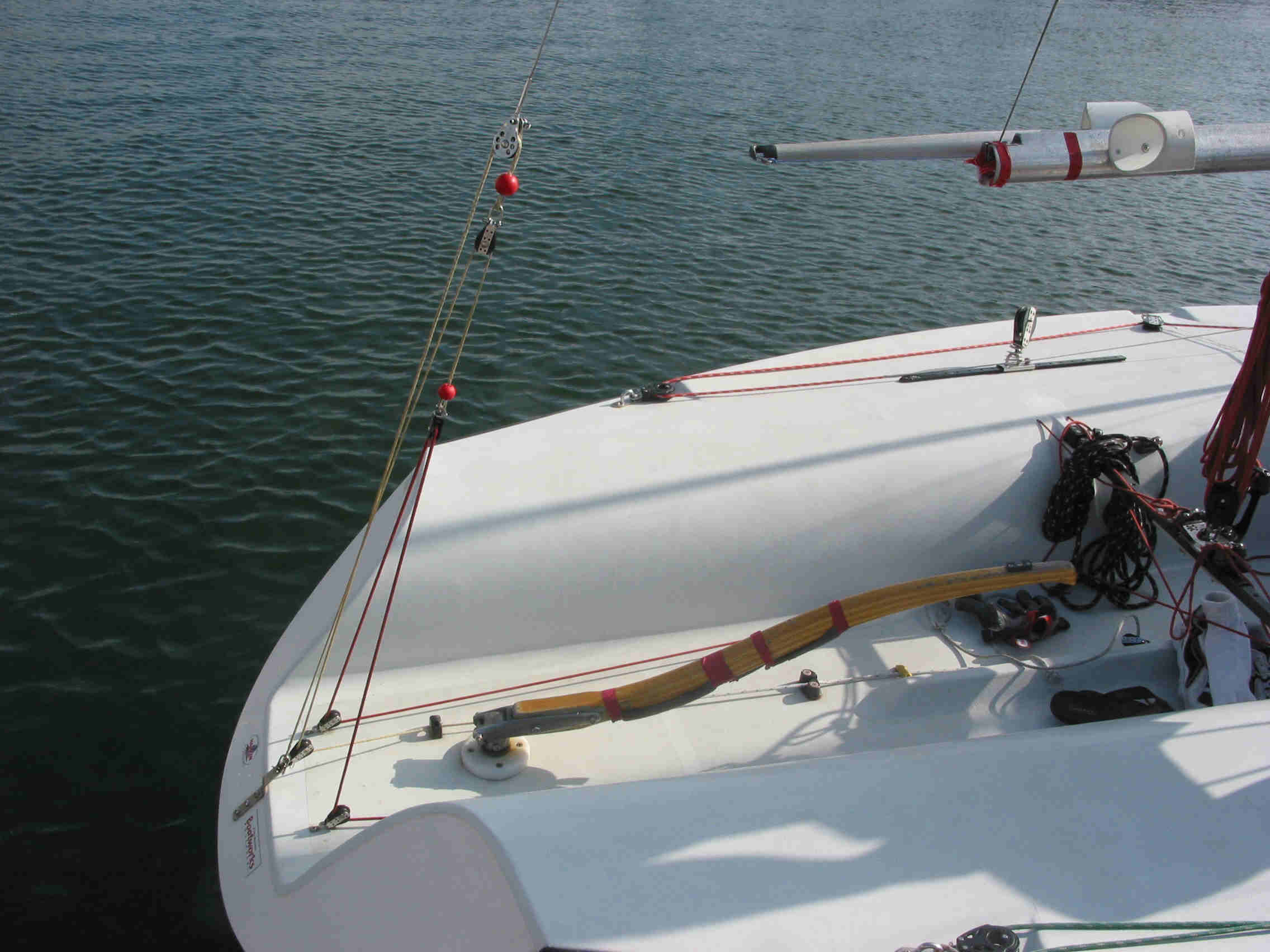

                                                                                                                     Light Line on Backstay

                                                                                                                     Light Line on Backstay

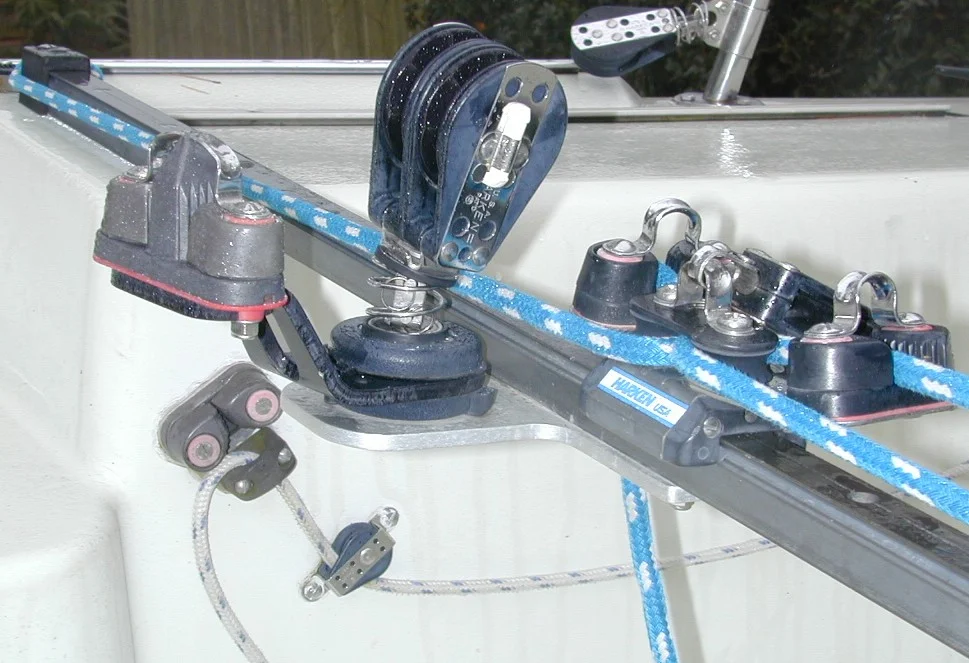

Mainsheet Barney Post Equivalent (Mounted on Traveller instead of Cockpit Floor) - Side View  Aluminum bracket bolted to Harken hi-beam traveler supports swivel mount for double ratchet main sheet block and double cam cleat for dual ratio mainsheet system from Layline. Double-ended backstay line and cleat on cockpit side beyond.

Mainsheet Barney Post Equivalent (Mounted on Traveller instead of Cockpit Floor) - Side View

Aluminum bracket bolted to Harken hi-beam traveler supports swivel mount for double ratchet main sheet block and double cam cleat for dual ratio mainsheet system from Layline. Double-ended backstay line and cleat on cockpit side beyond.

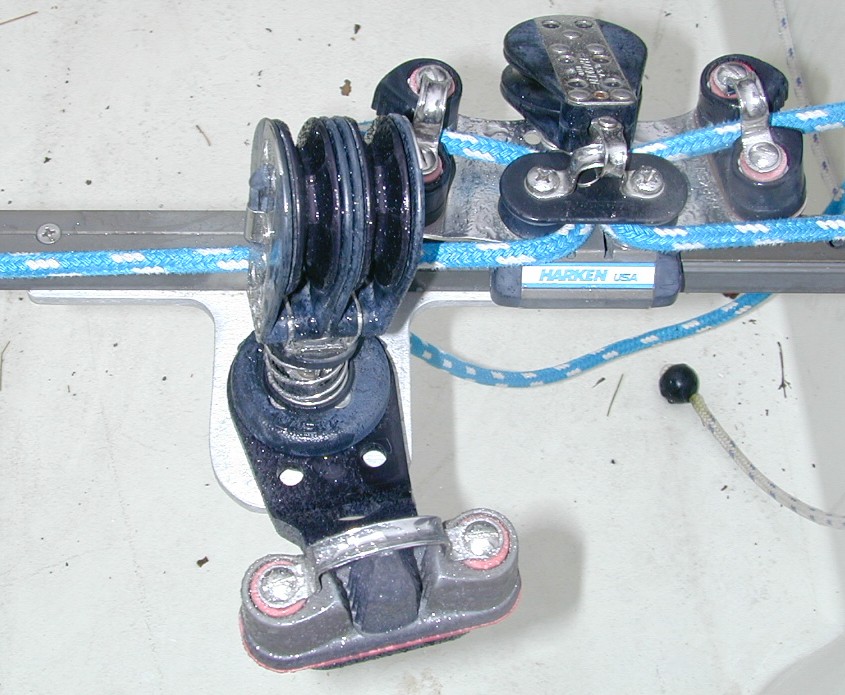

Top View  Mainsheet Bracket 2 = view from top. Bracket sized to provide clearance between track and swivel for car and control line to pass. Traveler car is high-load Harken with cleats mounted on car. Some people use a windward sheeting car.

Top View

Mainsheet Bracket 2 = view from top. Bracket sized to provide clearance between track and swivel for car and control line to pass. Traveler car is high-load Harken with cleats mounted on car. Some people use a windward sheeting car.

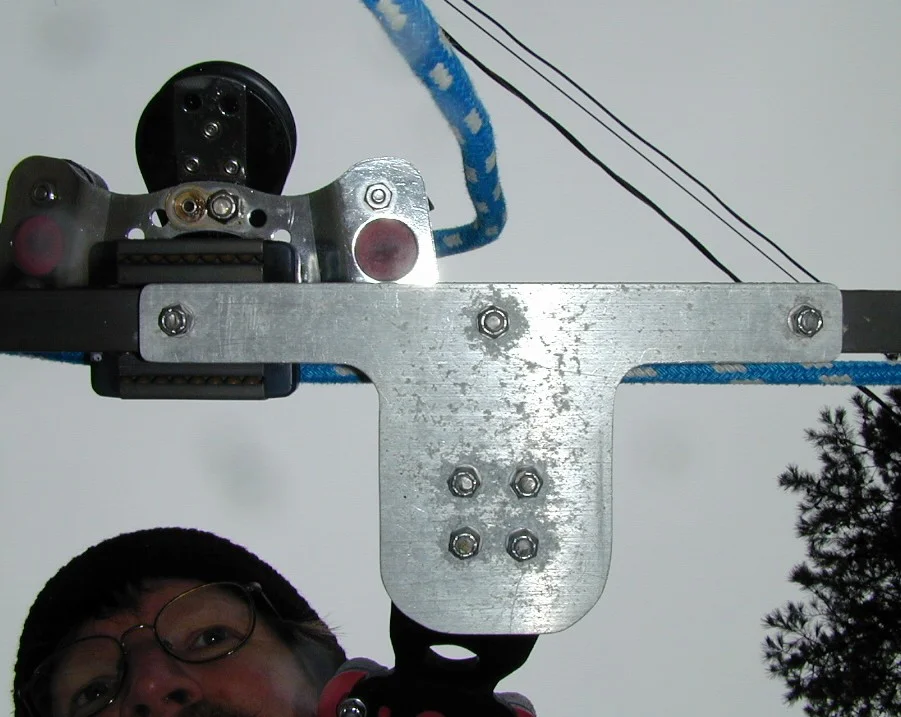

View from Underneath the Traveller  Mainsheet Bracket 3 = view from bottom. Aluminum bracket (1/4" plate) bolted to traveler using SS bolts and nylon lock nuts. Ends of bolts are cut off to prevent damage.

View from Underneath the Traveller

Mainsheet Bracket 3 = view from bottom. Aluminum bracket (1/4" plate) bolted to traveler using SS bolts and nylon lock nuts. Ends of bolts are cut off to prevent damage.

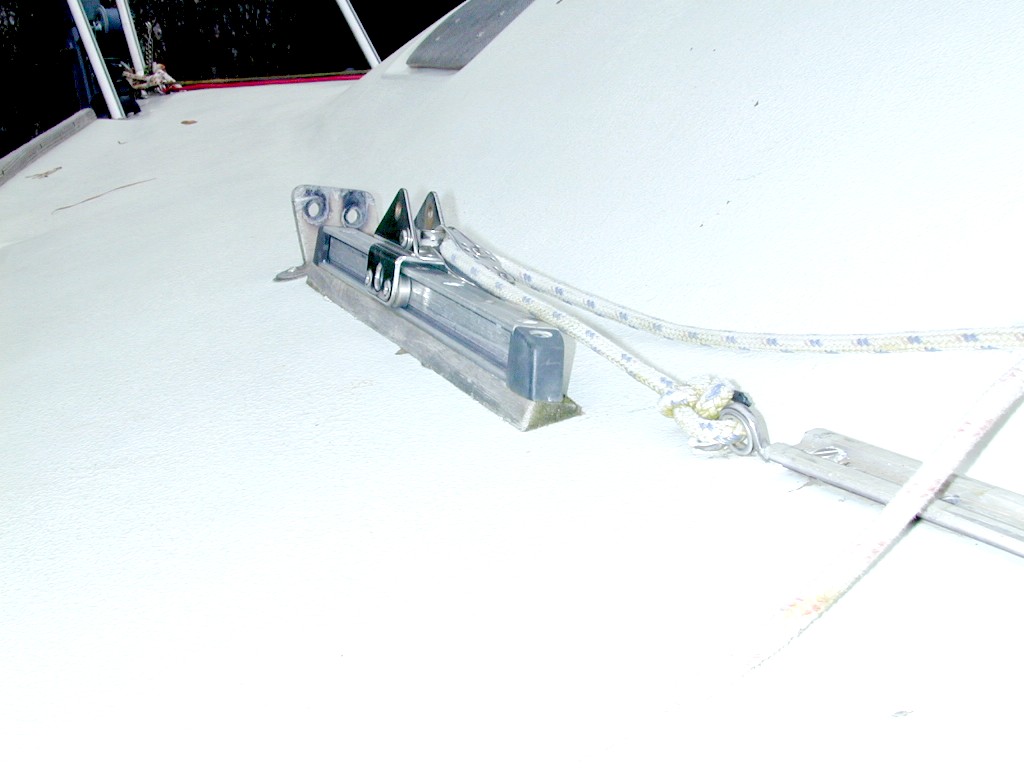

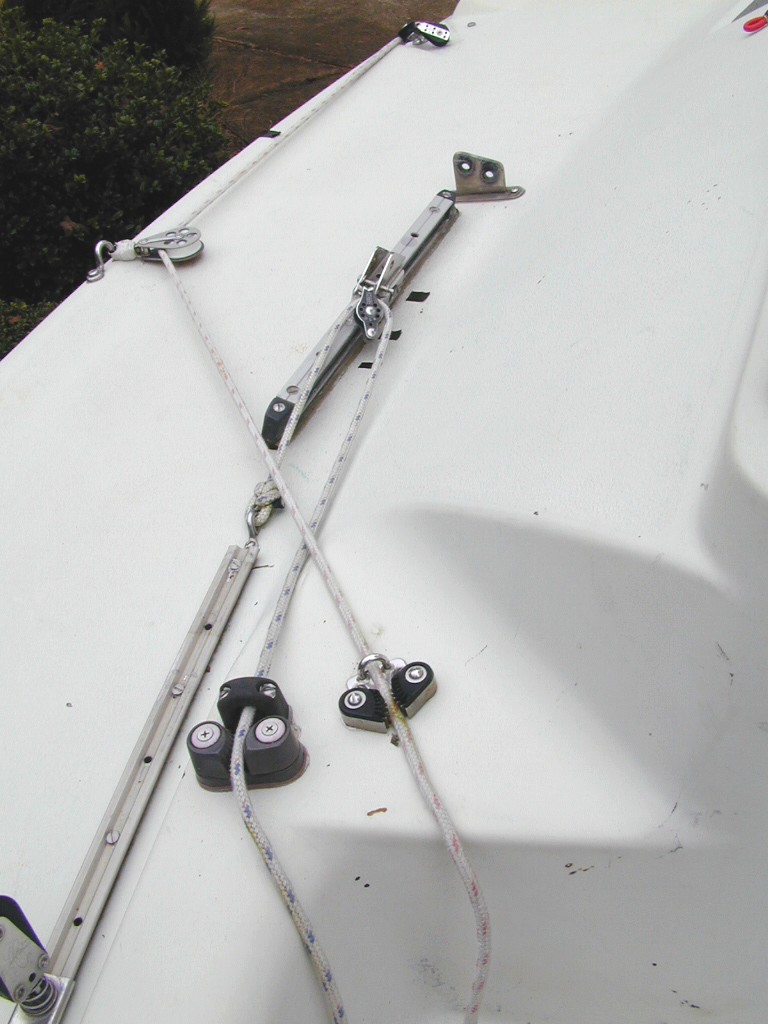

Aft Lowers Arrangement  Aft lowers 1 - Adjustable aft lower track made from old original main traveler track.

Aft Lowers Arrangement

Aft lowers 1 - Adjustable aft lower track made from old original main traveler track.

Aft Lowers Arrangement  Aft lowers 2 - 2:1 control line. Black marks on deck next to track indicate light, medium, and heavy settings.

Aft Lowers Arrangement

Aft lowers 2 - 2:1 control line. Black marks on deck next to track indicate light, medium, and heavy settings.

Aft lowers 3 - Track mounted on angled teak block to align track with shroud.

Aft lowers 3 - Track mounted on angled teak block to align track with shroud.

New Boat Console

New Boat Console

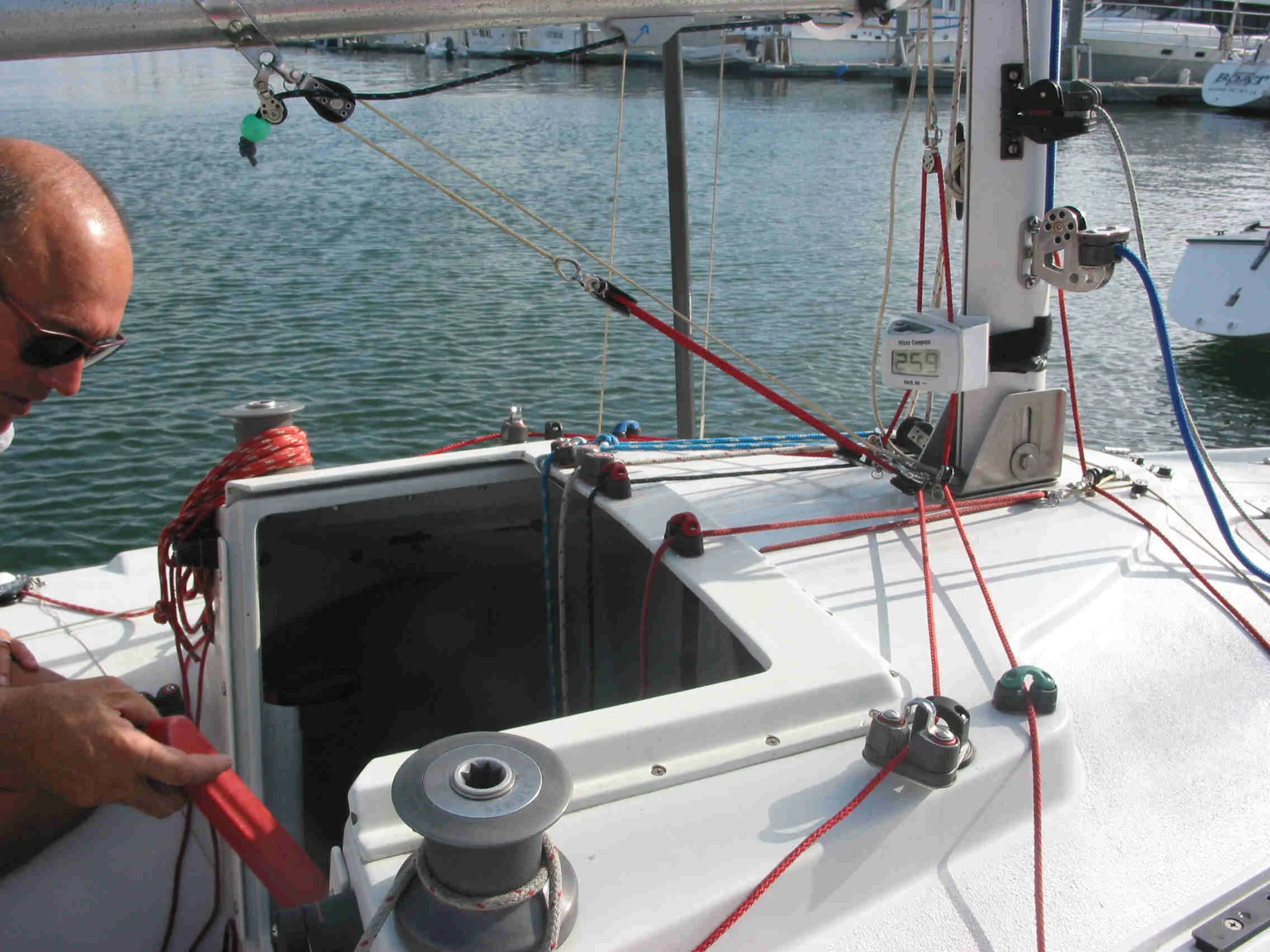

New Boat Console - Side View

New Boat Console - Side View



Backstay Controls - New Deck

Backstay Controls - New Deck

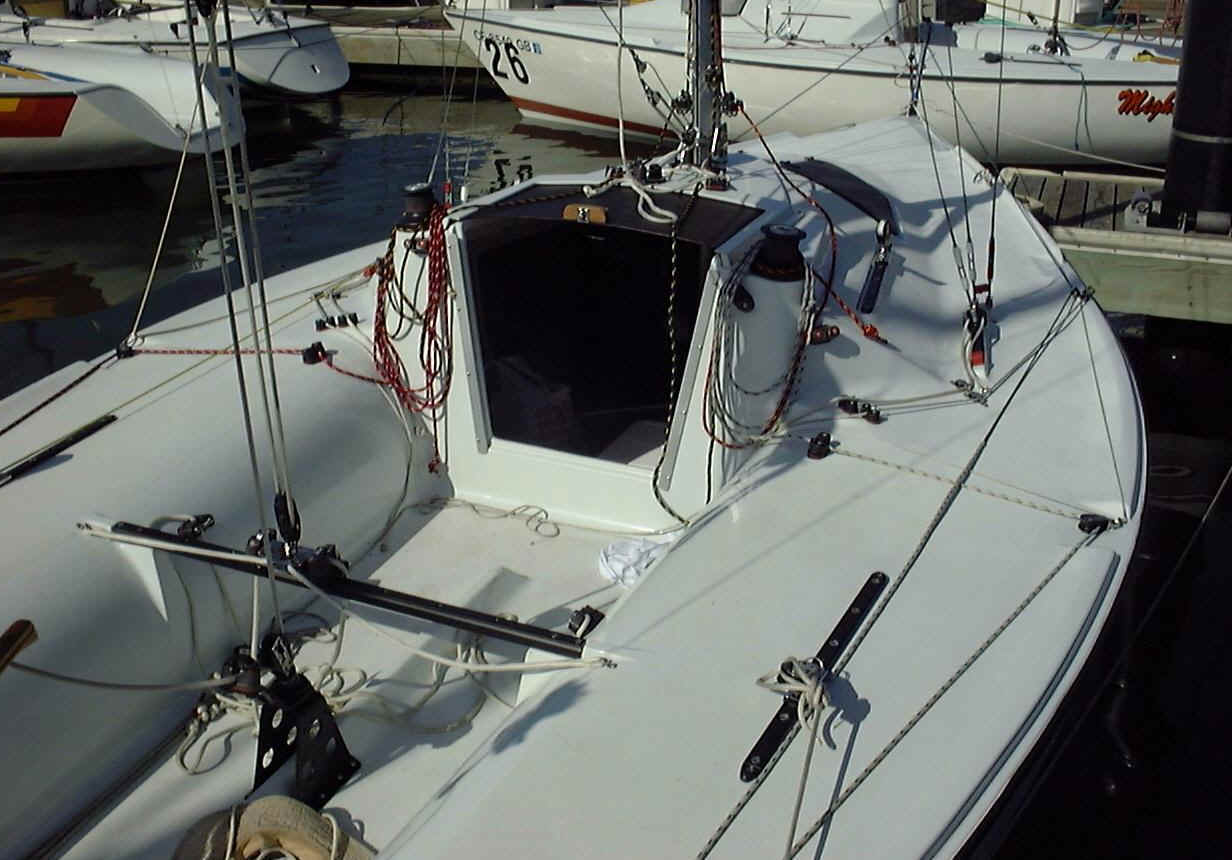

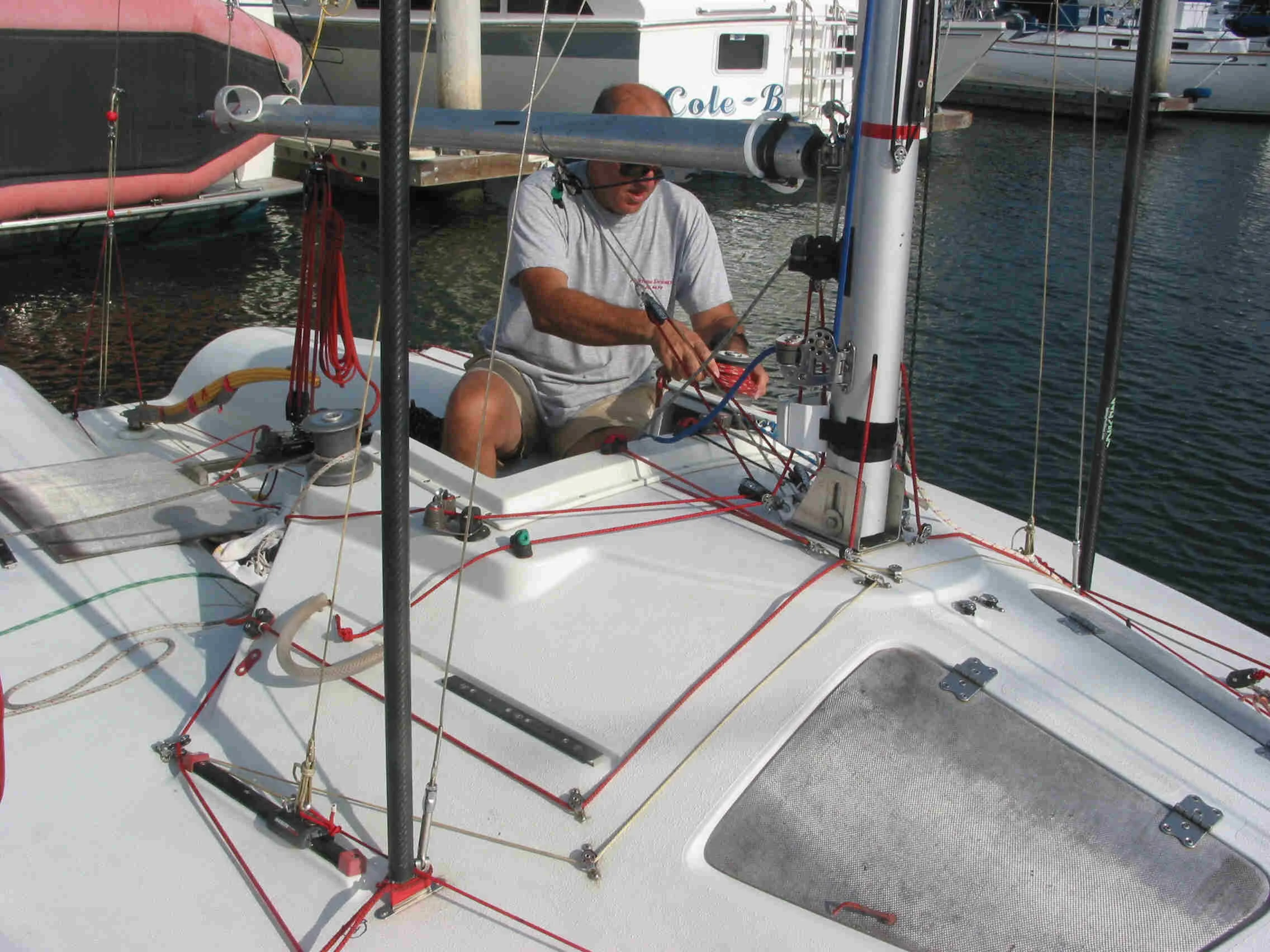

New Deck Layout (from year 2000)

New Deck Layout (from year 2000)

Disaster Area Rig Setup

Disaster Area Rig Setup

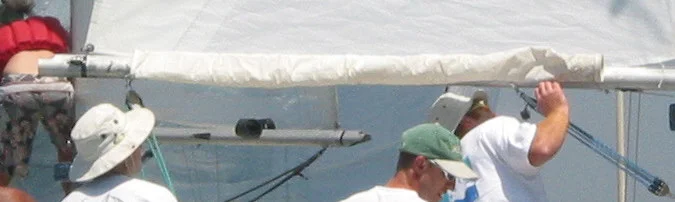

Sock on Boom used to hold Spinnaker Pole

Sock on Boom used to hold Spinnaker Pole
